GEC Instruments
Precision Temperature and Humidity Instrumentation
Thermocouples / Thermistors / Humidity /

GEC Pinpoint Monitor Software

All GEC instruments are accompanied by our PinPoint software package that includes the following four programs designed for running under Microsoft Windows ® .  The cost for this versatile and powerful software package is including in the pricing for the instrument.

  • PinPoint Monitor (PPM) is the main program used for display, plotting and logging of temperatures. It also supports a DDE server for communicating temperature data to other programs (including LabView) running on the same computer or over a network.
  • PinPoint Settings (PPS) is used to set the Com Port and the configuration file for PPM. Default temperature units of °C, °F, °K or °R can be selected.
  • PinPoint Viewer (PPV) is used to view, plot and export data from logged files.
  • PinPoint Parser (PPP) can be used to create configuration files which enable faster scanning of fewer channels.
  • Download a demonstration program and software manual to learn more about the software.

Please scroll through the screenshots below to take a look at some of the software features.

PinPoint Monitor, displays, plots, and logs data, all in real time.


Select channels of interest, and the chart will zoom automatically to show only the information you wish.


Set alarms to play sounds or execute arbitrary system commands when temperature thresholds are exceeded.


You may perform custom calibrations on any or all thermocouples.


Manage your logs all in one place; activate each with a click, or schedule them to start and stop automatically.


Store permanent records of your data in a database. Logs may be configured to operate at different scan rates, including arbitrary channels and common statistics of interest.


Export log data to a variety of output formats, including Microsoft Excel, for further data analysis.

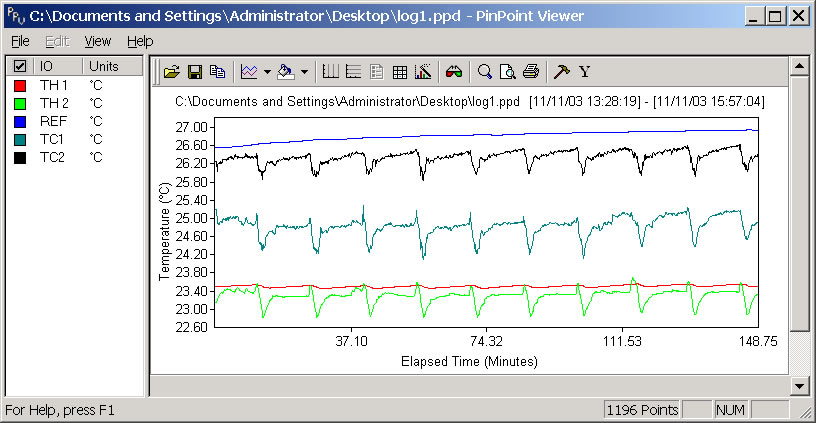

Or, view logs graphically at any time with the included PinPoint Viewer.


Optimize chart settings to fit the most data possible on your screen, or set a more leisurely pace for long term viewing.


Control autoscale behavior, or fix limits as you wish.


See a detailed report of the data in the real time plot with the included data viewer.


Maintain application wide settings such as COM port and default temperature units with PPSettings.

If you are interested in more details of the software, download and install
our software demo program and launch it, then click on Help >> PPM Help.

GEC Instruments is located in Gainesville, Florida, USA and can be reached by calling 352-373-7955 or Email
